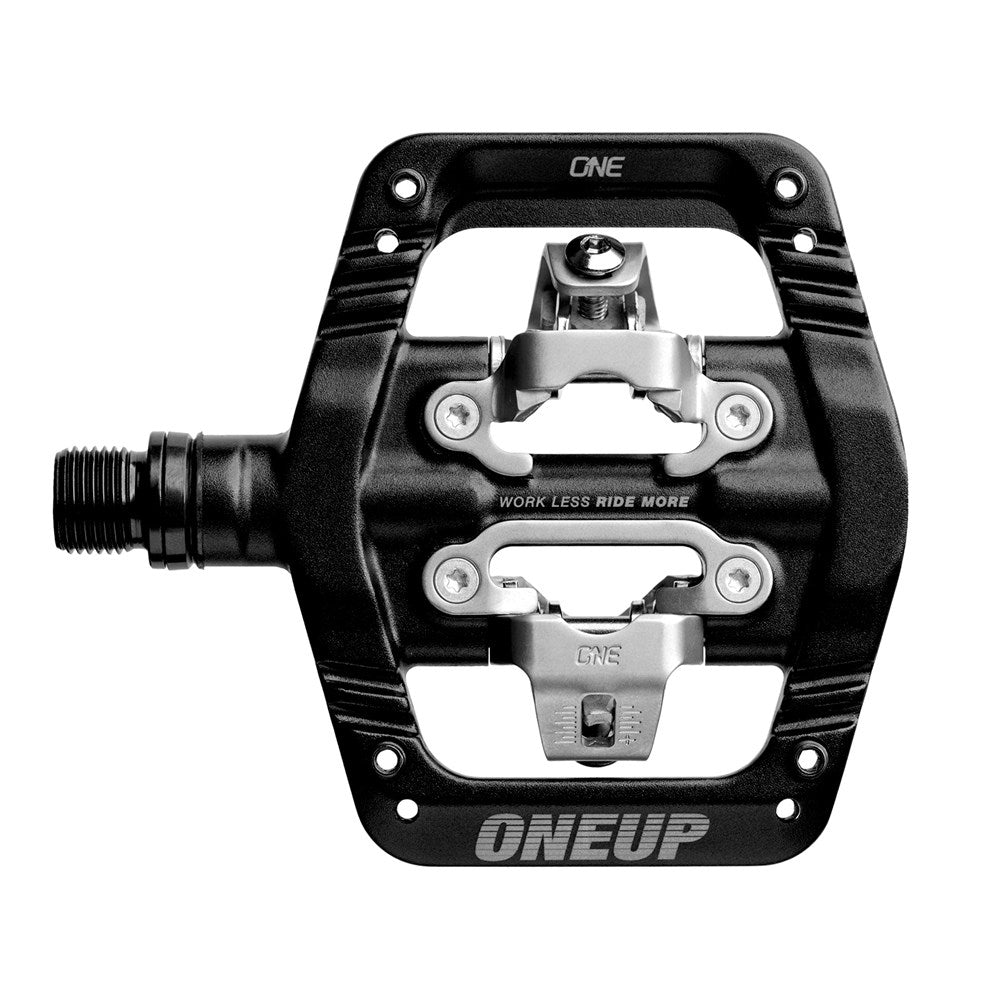

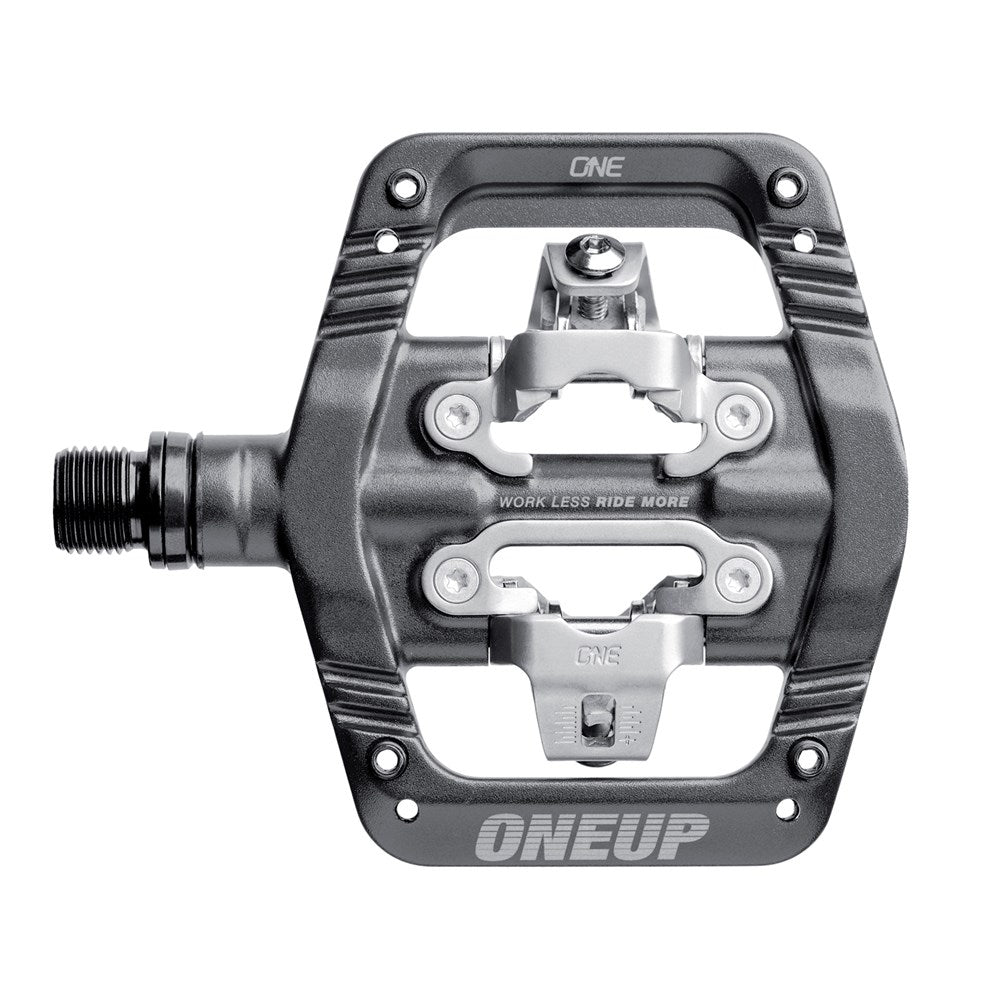

OneUp Clip Pedals

Light enough for cross country and durable enough for downhill. OneUp Clip Pedals are an ultra thin, super light pedal with a DH-size platform and a secure feel that you can fine tune. They're SPD compatible and available in 8 colours. These are your new favourite pedals.

Product Specs

• Weight: 410g with pins (4 pins per side)

• Thickness: 14.4mm (body), 26.8mm (binding)

• Size: 80mm x 90mm (W x L)

• Stance width: 57.5mm (centre of clip to outside of crank face)

• Float: 5° (12° release angle)

• Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning )

• Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings

• Axle: Chromoly Steel with Black ED coating

• Pins: Hollow M5x8mm threaded pins (self-cleaning hex through hole)

• Colours: Black, Red, Green, Blue, Orange, Purple, Grey, Bronze

What's in the Box

• 2x Clip Pedals (1x Left, 1x Right)

• 4x Installed hollow threaded pins per side (16x pins total)

• 2x OneUp Cleats with included hardware

• 2x Cleat Spacers

• 1x Pedal Bearing Nut Tool
